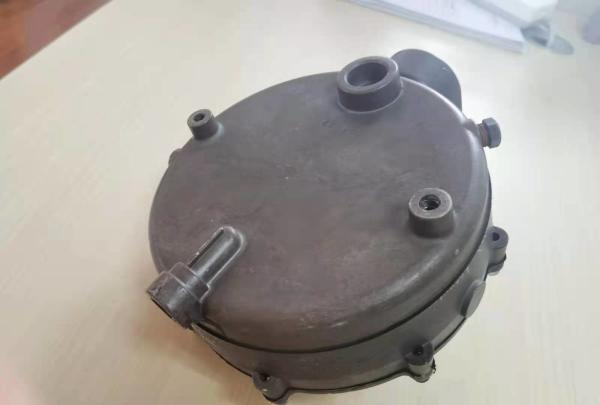

Aluminum Heated IMPCO Vaporizers Gas Converter With Primer

Product Categories
guangqing(anhui)gas technologies co.,ltd.
Contact Now

Aluminum Heated IMPCO Vaporizers Gas Converter With Primer

Brand Name : IMPCO

Model Number : MODEL E

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Material : Aluminum

Fuel Type : LPG Liquid/Vapor and Natural Gas

Operating Temperature Range : -40°F to +250°F (-40°C to +121°C)

HP/KW Rating : 325 hp (242.3 kW) LPG; 200 hp (150 kW) where lower water flow-rate is a factor.

Applications. : Stationary, mobile, industrial, and automotive

Inlet Pressure : Maximum 312 psi (21.51 Bar); Minimum 30 psi (207 kPa)

Mounting Position : Vertical (outlet down) recommended

Diaphragm Material : Hydrin

Contact Now

IMPCO Model E And PE Regulator Converter Vaporizer
The model E provides a positive outlet pressure for applications that require a positive feed system and/or the ability to vaporize liquid fuel. A heated regulator/vaporizer is not required of CNG (it is recommended that the Model PEV be used for these systems). Additional mixture stability is possible with the PE as a result of a more consistent fuel temperature gained through the use of the heated labyrinth. The PE is supplied as a fixed outlet pressure regulator but can be onverted to an adjustable unit with the AC1-74 retrofit kit.
IMPCO MODEL E Secondary Gas Regulator Features:
  • Low pressure demand regulator for natural gas or propane
  • Initial Flow Pressure -0.05 to -0.35 w.c.
  • Perfect for small engine applications
  • Includes primer
Model E Regulator Product parameters
SPECIFICATIONS
Fuel Type LPG Liquid/Vapor and Natural Gas
Inlet Pressure 　
Maximum 312 psi (21.51 Bar)
Minimum 30 psi (207 kPa)
Outlet Pressure (Nominal)
EB -1.5” w.c. (-0.37 kPa)
EO -5.0” w.c. (-0.12 kPa)
PE +5.0” w.c. (1.2 kPa)
HP/kW Rating 325 hp (242.3 kW) LPG
200 hp (150 kW) where lower water flow-rate is a factor.
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required 40 micron
Heating Chamber Source Required for liquid LPG
Mounting Position Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 specified LPG fuel
Diaphragm Material Hydrin, Silicone, and Fluorosilicone (optional)
Applications Stationary, mobile, industrial, and automotive
Certification UL (AU2317 & AU1502), Inquire for specific ECE approval

How does a low pressure regulator work?
A pressure regulator reduces a supply (or inlet) pressure to a lower outlet pressure and works to maintain this outlet pressure, despite fluctuations in the inlet pressure. The reduction of the inlet pressure to a lower outlet pressure is the fundamental characteristics of pressure regulators.
Model KN 039-291 is a secondary regulator. It is suitable for use with low pressure, Natural Gas and LPG Vapor fuels. This regulator is typically used in service applications up to 30 kW.
Aluminum Heated IMPCO Vaporizers Gas Converter With PrimerAluminum Heated IMPCO Vaporizers Gas Converter With PrimerAluminum Heated IMPCO Vaporizers Gas Converter With Primer
IMPCO MODEL E Secondary Gas Regulator Features:
  • Low pressure demand regulator for natural gas or propane
  • Initial Flow Pressure -0.05 to -0.35 w.c.
  • Perfect for small engine applications
  • Includes primer

IMPCO Gas Regulator :

A propane vaporizer increases the speed at which propane travels to machines that require it for power. A propane tank may not be large enough or have the technical capability to deliver propane at the appropriate speed or pressure, but a vaporizer corrects the problem. IMPCO manufactures various propane vaporizers. If a propane vaporizer malfunctions, it needs immediate troubleshooting to ensure it functions safely while also providing the other machine the fuel it needs.
