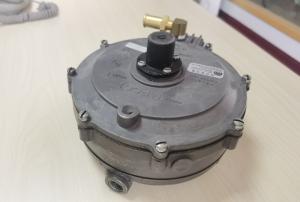

Model E Two Stage Impco LPG Fuel System Parts Regulator

Name: Model E Two Stage Impco LPG Fuel System Parts Regulator
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : MODEL E

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Material : Aluminum

Fuel Type : LPG Liquid/Vapor and Natural Gas

Operating Temperature Range : -40°F to +250°F (-40°C to +121°C)

HP/KW Rating : 325 hp (242.3 kW) LPG; 200 hp (150 kW) where lower water flow-rate is a factor.

Applications. : Stationary, mobile, industrial, and automotive

Inlet Pressure : Maximum 312 psi (21.51 Bar); Minimum 30 psi (207 kPa)

Mounting Position : Vertical (outlet down) recommended

Diaphragm Material : Hydrin

Contact Now

IMPCO Model E & PE Series Are Two Stage Regulator Converters

We ship directly from various warehouses located all over North America to provide the fastest shipping at the most affordable prices.

We distribute an extensive selection of FORKLIFT LPG REGULATOR parts for all makes and models.

IMPCO MODEL E Secondary Gas Regulator Features:

Low pressure demand regulator for natural gas or propane
Initial Flow Pressure -0.05 to -0.35 w.c.
Perfect for small engine applications
Includes primer

Model E Regulator Product parameters

SPECIFICATIONS
Fuel Type	LPG Liquid/Vapor and Natural Gas
Inlet Pressure
Maximum	312 psi (21.51 Bar)
Minimum	30 psi (207 kPa)
Outlet Pressure (Nominal)
EB	-1.5” w.c. (-0.37 kPa)
EO	-5.0” w.c. (-0.12 kPa)
PE	+5.0” w.c. (1.2 kPa)
HP/kW Rating	325 hp (242.3 kW) LPG 200 hp (150 kW) where lower water flow-rate is a factor.
Operating Temperature Range	-40°F to +250°F (-40°C to +121°C)
Fuel Filtration Required	40 micron
Heating Chamber Source	Required for liquid LPG
Mounting Position	Vertical (outlet down) recommended. Horizontal position can be used when fuel contamination can be controlled with HD-5 specified LPG fuel
Diaphragm Material	Hydrin, Silicone, and Fluorosilicone (optional)
Applications	Stationary, mobile, industrial, and automotive
Certification	UL (AU2317 & AU1502), Inquire for specific ECE approval

Model E Two Stage Impco LPG Fuel System Parts Regulator

How does a low pressure regulator work?

A pressure regulator reduces a supply (or inlet) pressure to a lower outlet pressure and works to maintain this outlet pressure, despite fluctuations in the inlet pressure. The reduction of the inlet pressure to a lower outlet pressure is the fundamental characteristics of pressure regulators.

Model KN 039-291 is a secondary regulator. It is suitable for use with low pressure, Natural Gas and LPG Vapor fuels. This regulator is typically used in service applications up to 30 kW.

IMPCO Gas Regulator :

A propane vaporizer increases the speed at which propane travels to machines that require it for power. A propane tank may not be large enough or have the technical capability to deliver propane at the appropriate speed or pressure, but a vaporizer corrects the problem. IMPCO manufactures various propane vaporizers. If a propane vaporizer malfunctions, it needs immediate troubleshooting to ensure it functions safely while also providing the other machine the fuel it needs.

Our Service:

Committed to offer most reliable products, best engineering services with timely response and detailed system solution, Guangqing value every customer’s requirement and cherish the diversity, hoping promote the green power concept under mutual development with customers nationwide and worldwide.
