95CFM Diaphragm IMPCO Mid Size Engine Mixers Fuel System Parts

  • 1
  • 2
  • 3

Brand Name : IMPCO

Model Number : MODEL 60

Certification : UL

Place of Origin : USA

MOQ : 24

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Price : Depending on quantity

Material : Aluminum

Fuel Type : LPG Vapor or Nature Gas, Bi-Fueled with Gasoline

Operating Temperature Range : .-40°F to +250°F (-40°C to +121°C)

HP/KW Rating : Up to 73hp(54.0kW)

Flow Rate : 95CFM(44.8L/s)

Inlet Pressure : -1.5” w.c. (-0.37 kPa)

Mounting : Any

Diaphragm Material : N/A

Contact Now

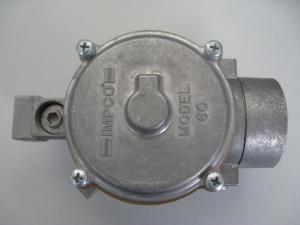

IMPCO Model 60 , Air-gas valve/diaphragm mixer, up to 95 CFM (44.8 L/s) airflow
The IMPCO Model 60 is an air-gas valve/diaphragm mixer designed to fit engines from 79 to 183 cubic inches (1.3 to 3.0 liters) in displacement and up to 95 CFM (44.8 L/s) airflow. It is a 90° air horn design available with a 2.06 inch (52.4mm) air horn and fits most current CA100 throttle bodies and adapters. It can also be used in-line, separate from the throttle body.
The mixer comes in two configurations: the CT version for open-loop engine applications without an electronic engine controller, and the FT version for use with the IMPCO Commander digital closed-loop fuel controller. Custom flow specifications for the mixer can be set and sealed at the factory.
Tamper resistant plugs are available for installation by your technicians after the IMPCO Model 60 mixer has been adjusted at your facility to fit your application.
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas, Bi-Fueled with Gasoline
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Vertical
Diaphragm Material Silicone
HP/(kW) Rating Up to 73 hp (54.0 kW) @ 95 CFM (44.8 L/s) and 2.0” Hg manifold depression
